KNX bus output

1 channel with choke, the bus output power has data modulation function, and provides working power to the bus devices at the same time (regular 2 4 V switching power supply cannot be replaced), 30VDC +1/-2V

KNX rated current

640mA, with bus short circuit protection

Auxiliary power output

30V DC

Auxiliary power output current

Idc≤640mA - Inx

Power down hold time

＞200ms

frequency

50-60Hz

shell material

PC  flame retardant

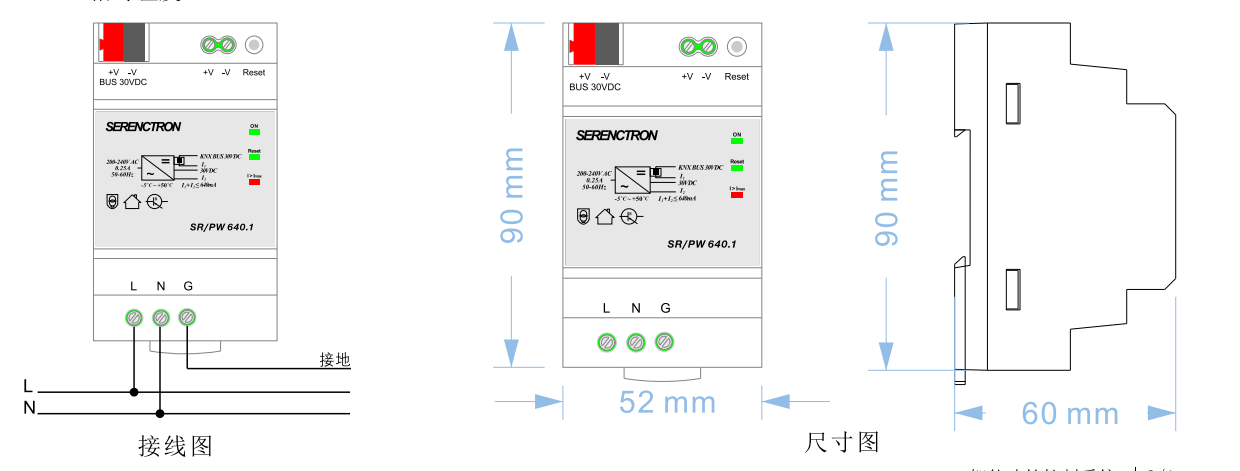

Dimensions (H xW x D)

90mm X  52 mm X  60 mm (about 3P)

Weight(approx.)

0.194Kg

Installation method

DIN rail mounting

Waterproof level (EN 60529)

IP 20

Degree of protection (IEC 1140)

III

Overload Protection (IEC 664-1)

III

Operating temperature

- 5°C...+45°C

Storage temperature

- 25°C...+55°C

transport temperature

- 25°C...+70°C

Relative humidity

max 90%
