Function description:
1. As a logical connection and galvanic isolation between branch lines and areas
2. Support filter table function
main input | none |
bus input | 24-30VDC |
bus current | ≤ 10mA |
Working power | ≤ 1.1W |
functional interface | 1 Main KNX line 1 Sub KNX line |
shell material | PC flame retardant |

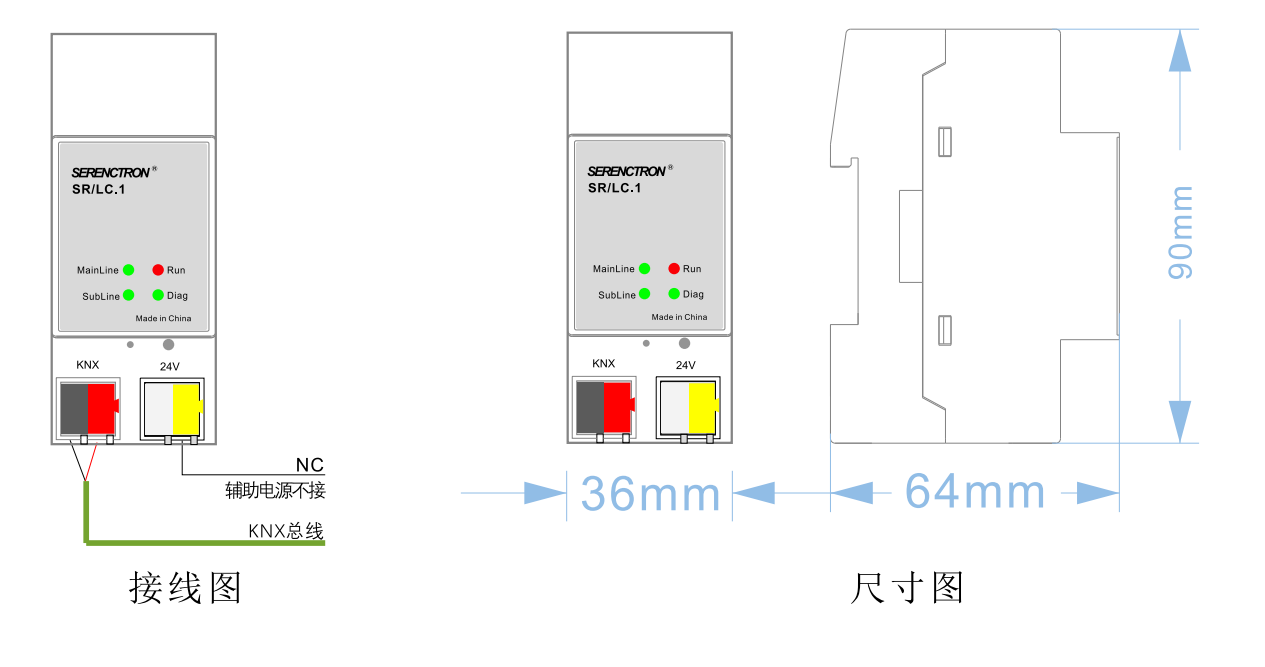

Dimensions (H xW x D) | 90mm X 36mm X 64mm (Approx: 2P) |
Weight(approx.) | 0.1KG |
Installation method | 35mm DIN rail mounting |
Operating temperature | - 5°C...+45°C |
Storage temperature | - 25°C...+55°C |
transport temperature | - 25°C...+70°C |
Relative humidity | max 90% |
