Function description:
1. It can realize the timing control function of the equipment on the KNX bus, up to 128 objects and 256 group addresses;
2. It can send control commands such as switches, scenes, curtains, etc.;
3. The module timing schedule and related parameters of the timing module can be modified remotely through Ethernet;
main input | 12~24VDC |
bus input | 21-30V DC |
bus current | ≤ 10mA |
Working power | ≤ 1.1W |
functional interface | 1 network LAN port 1 channel KNX interface |
shell material | PC flame retardant |

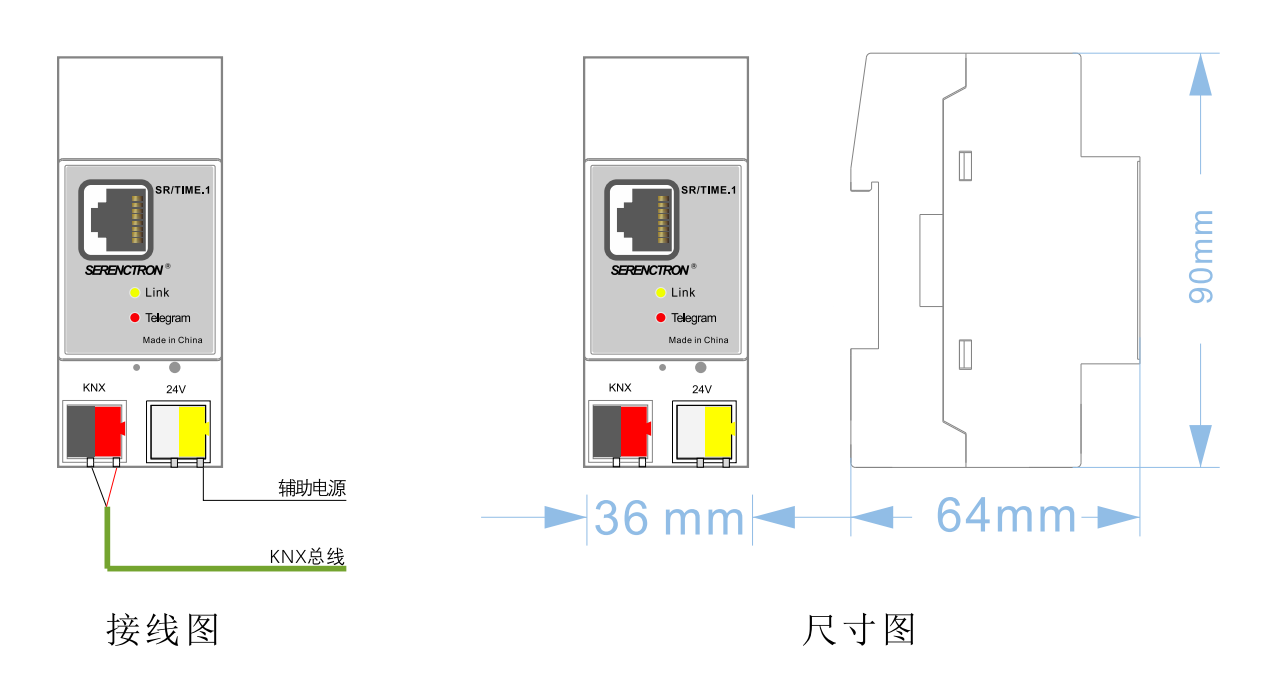

Dimensions (H xW x D) | 90mm X 36mm X 64mm (Approx: 2P) |
Weight(approx.) | 0.1KG |
Installation method | 35mm DIN rail mounting |
Operating temperature | - 5°C...+45°C |
Storage temperature | - 25°C...+55°C |
transport temperature | - 25°C...+70°C |
Relative humidity | max 90% |
