Function description

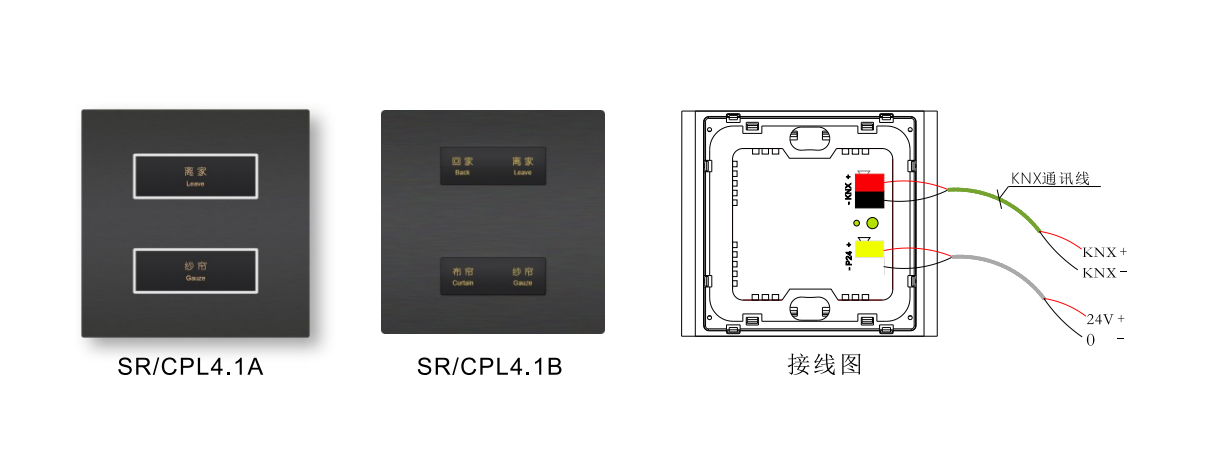

1. Can be used for switching lighting, curtain opening and closing, etc., with long press, short press and inversion functions Scenes
bus input | 24-30VDC |
bus current | ≤ 10mA |
frequency | 50-60Hz |
Working power | ≤0.25W |
shell material | ABS |
Dimensions (H xW x D) | 80mm X 80mm X 35mm |
Weight(approx.) | About 0.1kg |
Installation method | 86 bottom box |
Operating temperature | - 5°C...+45°C |
Storage temperature | - 25°C...+55°C |
transport temperature | - 25°C...+70°C |
Relative humidity | max 90% |
