Function description:
1. Forward control signals between different branch lines through a local area network
2. As a programming interface, connect the PC with the KNX bus
3. According to KNXnet/IP rules, use Core, device management, tunnel and routing to operate KNX routers to forward message control signals
4. With filter table and communication function through Ethernet multicast port
Power supply voltage: DC12-DC30V, AC 12-24V
Auxiliary power | 12V-24V AC/DC |
bus input | 24-30VDC |
bus current | ≤ 10mA |
Working power | ≤ 1.1W |
functional interface | 1 network LAN port 1 channel KNX interface |
shell material | PC flame retardant |

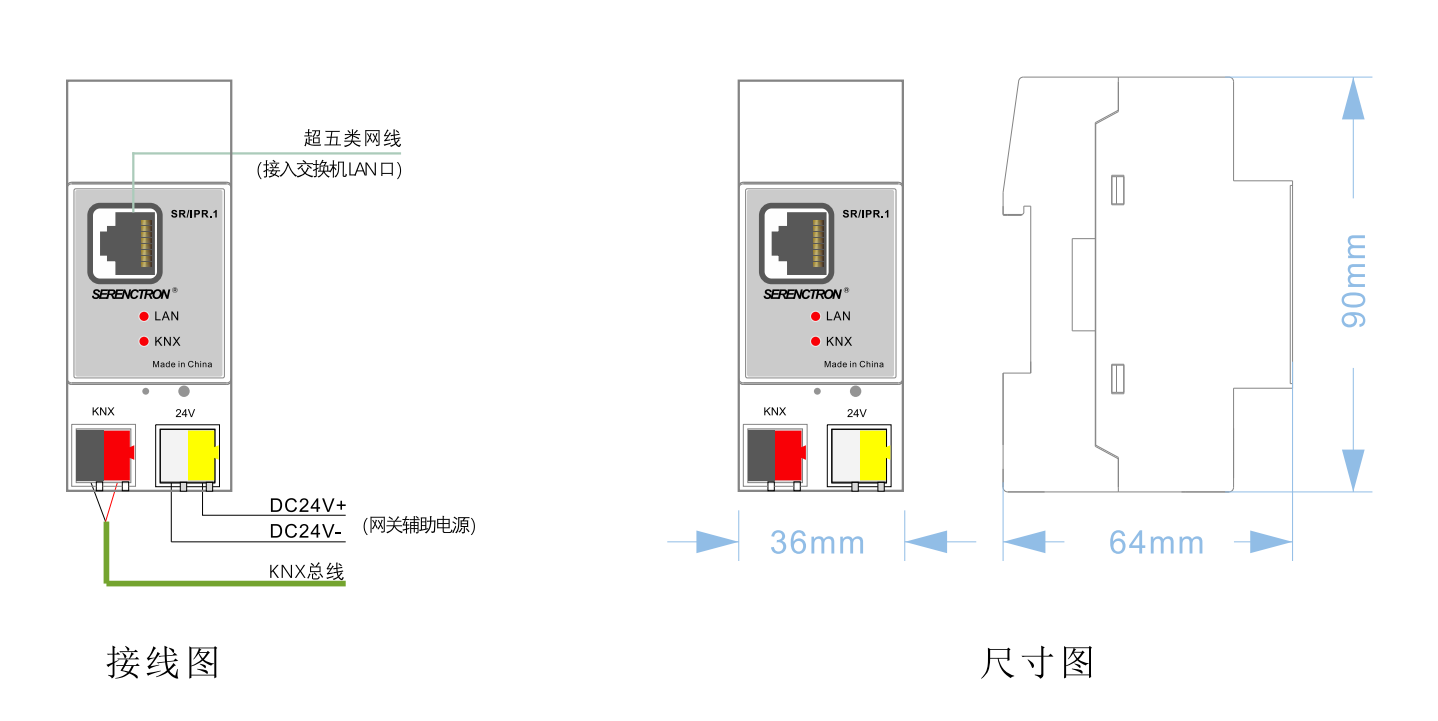

Dimensions (H xW x D) | 90mm X 36mm X 64mm (Approx: 2P) |
Weight(approx.) | 0.1Kg |
Installation method | 35mm DIN rail mounting |
Operating temperature | - 5°C...+45°C |
Storage temperature | - 25°C...+55°C |
transport temperature | - 25°C...+70°C |
Relative humidity | max 90% |
