Function description:
1. Connect the programming device or diagnostic device to the KNX bus through the USB interface
2. Realize database download and data monitoring through visual control software and ETS software
main input | USB 5V |
bus input | 24-30VDC |
bus current | ≤ 10mA |
Working power | ≤ 1.1W |
functional interface | 1 channel USB interface 1 channel KNX interface |
shell material | PC flame retardant |

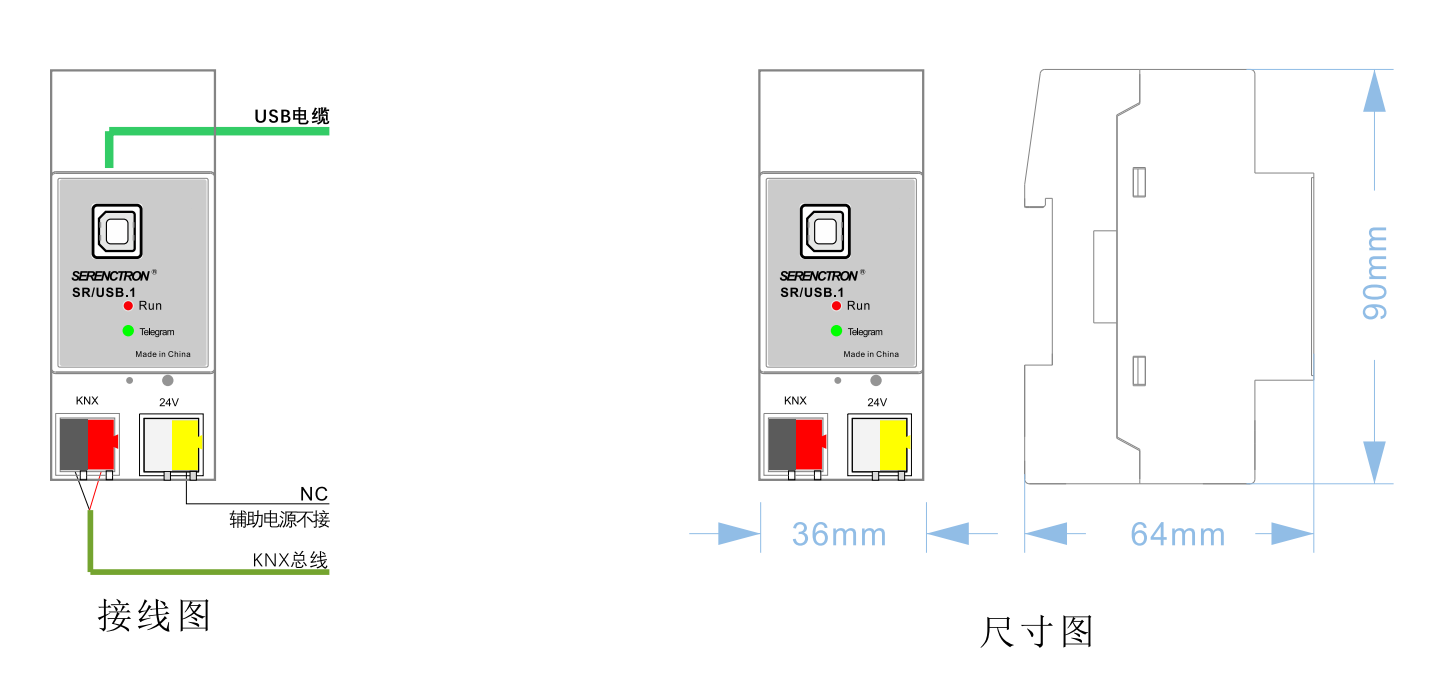

Dimensions (H xW x D) | 90mm X 36mm X 64mm (Approx: 2P) |
Weight(approx.) | 0.1Kg |
Installation method | 35mm DIN rail mounting |
Operating temperature | - 5°C...+45°C |
Storage temperature | - 25°C...+55°C |
transport temperature | - 25°C...+70°C |
Relative humidity | max 90% |
