Function description:
1. There are 2 independent circuits, each providing a maximum of 5A or 1100W
2. With manual control dimming function
3. With relative dimming function and absolute dimming function
4. With status report feedback function
5. With timing cycle function, it can realize stair light control and cycle flashing control
6. It has the function of saving and restoring on site
7. With scene control function
main output | 2-way CMOS dimming |
main input | 200~240V AC |
bus input | 24-30VDC |
bus current | ≤ 10mA |
frequency | 50-60Hz |
Working power | ≤2.7W |
Output (per loop) | 5 A, 2 circuits maximum current 10A |
shell material | PC flame retardant |

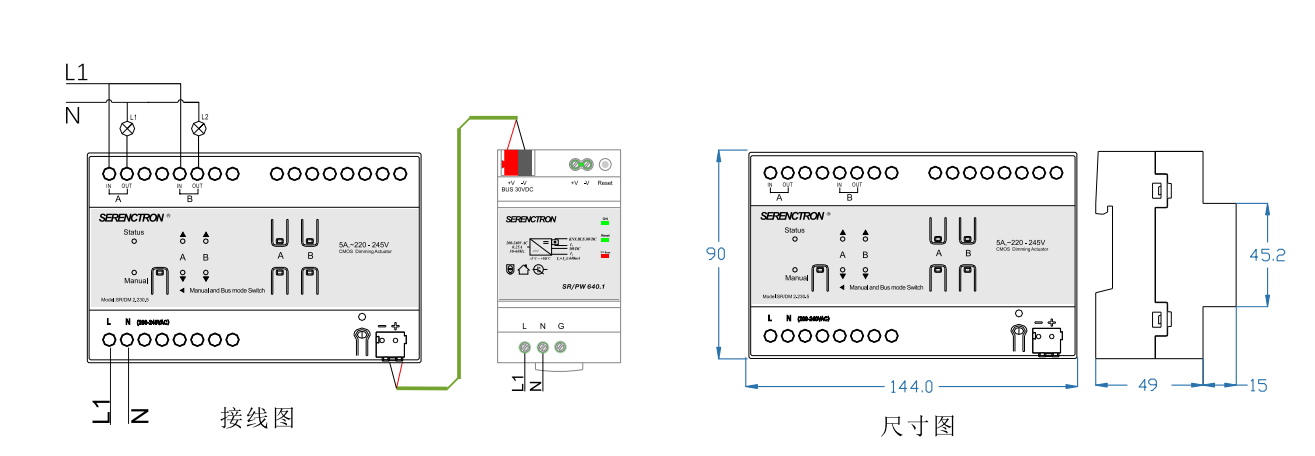

Dimensions (H xW x D) | 90mm X 144mm X 64mm (Approx: 8P) |
Weight(approx.) | 0.4KG |
Installation method | 35 mm DIN rail mount |
Operating temperature | - 5°C...+45°C |
Storage temperature | - 25°C...+55°C |
transport temperature | - 25°C...+70°C |
Relative humidity | max 90% |
