1 channel 10A dimming actuator SR/DM1.230.10

Function description:

1. With 1 independent circuit, each circuit can provide a maximum of 10A or 2000W

2. With manual control dimming function

3. With relative dimming function and absolute dimming function

4. With status report feedback function

5. With timing cycle function, it can realize stair light control and cycle flashing control

6. It has the function of saving and restoring on site

7. With scene control function


Honor of qualification The engineering case
Product description

main output

1 channel 2000W SCR dimming

main input

200~240V AC

bus input

24-30VDC

bus current

≤ 10mA

frequency

50-60Hz

Working power

≤2.7W

Output (per loop)

10 A, 1 loop maximum current 10A

shell material

PC flame retardant

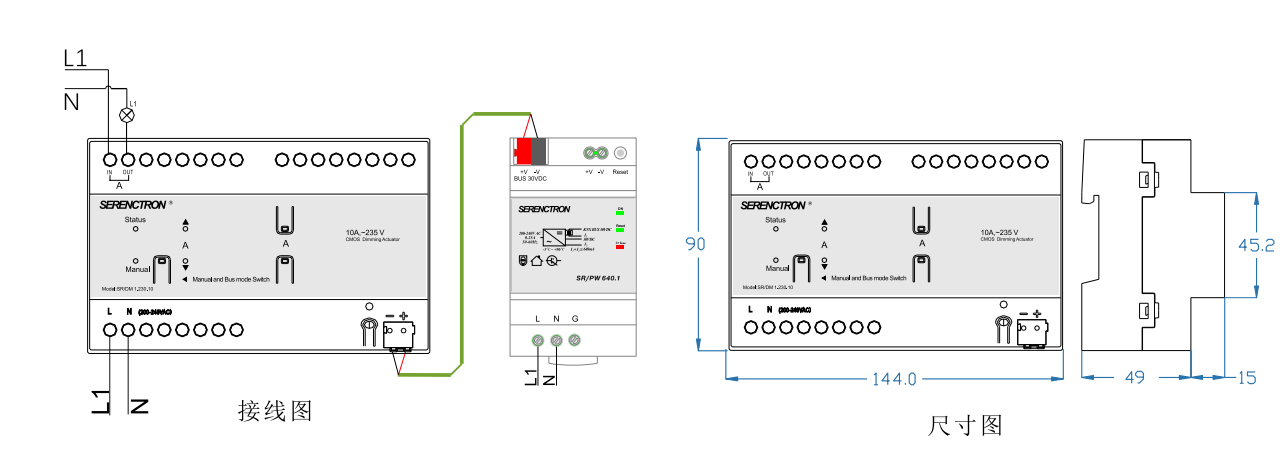

Dimensions (H xW x D)

90mm X 144mm X 64mm (approx.: 8P)

Weight(approx.)

0.4KG

Installation method

35 mm DIN rail mount

Operating temperature

- 5°C...+45°C

Storage temperature

- 25°C...+55°C

transport temperature

- 25°C...+70°C

Relative humidity

max 90%
