Function description:
1. Control the regulator or electronic ballast through the 1-10V interface output
2. With 4-way 16A switch control
3. With relative dimming function and absolute dimming function
4. With status report feedback function
5. With timing cycle function, it can realize stair light control and cycle flashing control
6. It has the function of saving and restoring on site
7. Selection function of relay switch state after bus voltage recovery
8. With scene control function
main output | 1-10V |
main input | 200~240V AC |
bus input | 24-30VDC |
bus current | ≤ 10mA |
frequency | 50-60Hz |
Working power | ≤2.7W |
Relay switch output (per circuit) | Pure resistance load: max 16A Incandescent lamp: max 10A Fluorescent lamps with electronic ballast: max 4 A |
0-10V output (per loop) | Output per loop ≤ 100mA |
shell material | PC flame retardant |

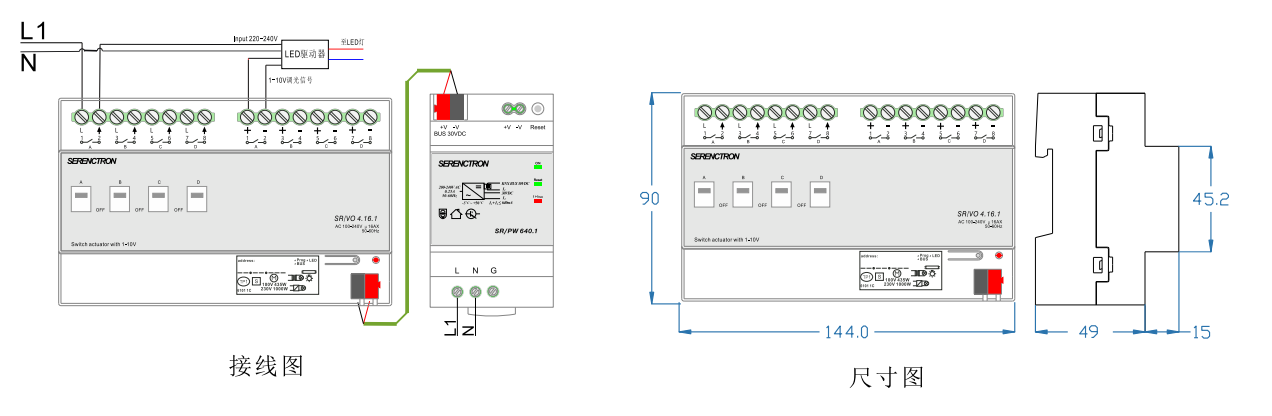

Dimensions (H xW x D) | 90mm X 144mm X 64mm (Approx: 8P) |
Weight(approx.) | 0.4KG |
Installation method | 35mm DIN rail mounting |
Operating temperature | - 5°C...+45°C |
Storage temperature | - 25°C...+55°C |
transport temperature | - 25°C...+70°C |
Relative humidity | max 90% |
