4-way 20A switch actuator SR/R4.20.1

Function description:

1. Independent switch controls the power load of 4 circuits

2. With manual switch control function

3. With delay switch control function

4. Function of timing switch and cycle switch control

5. With scene save and restore function

6. Module port status query and reply function

7. With logic control function

8. Relay state selection function after bus disconnection and recovery

9. With scene combination control function


Honor of qualification The engineering case
Product description

main output

4 circuit design, 230VAC (50/60Hz) 20A per circuit

main input

200-240V AC

bus input

24-30V DC

bus current

≤ 10mA

Working power

≤2.5W/4.5W

frequency

50-60Hz

Output (per loop)

Pure resistance load: max 20A

Incandescent lamp: max 20A

Motor: max 10A

Fluorescent lamps with electronic ballast: max 10 A

shell material

PC flame retardant

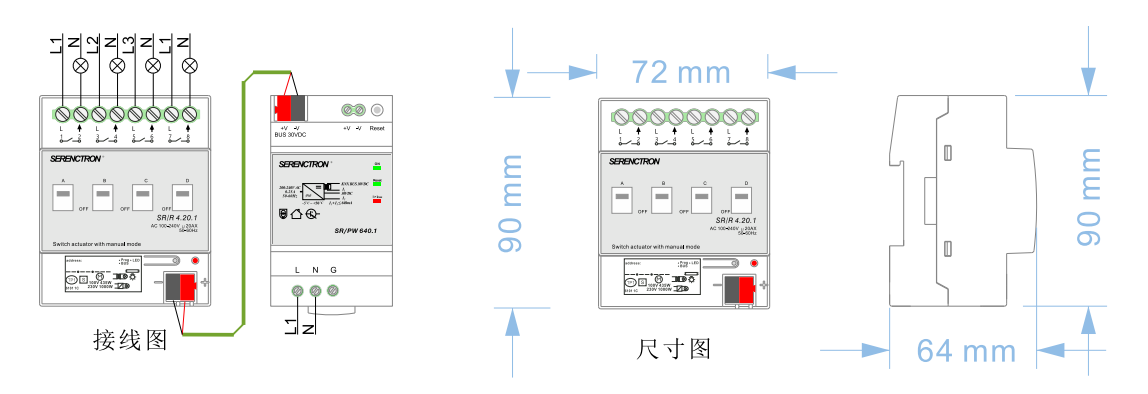

Dimensions (H xW x D)

90mm X 72mm X 64mm (Approx: 4P)

Weight(approx.)

0.24Kg

Installation method

35mm DIN rail mounting

Operating temperature

- 5°C...+45°C

Storage temperature

- 25°C...+55°C

transport temperature

- 25°C...+70°C

Relative humidity

max 90%

main output

4 circuit design, 230VAC (50/60Hz) 20A per circuit

main input

200-240V AC

bus input

24-30V DC
