Function description
1. Independent switch controls the power load of 8 circuits
2. With manual switch control function
3. With delay switch control function
4. Function of timing switch and cycle switch control
5. With scene save and restore function
6. Module port status query and reply function
7. With logic control function
8. Relay state selection function after bus disconnection and recovery
9. With scene combination control function
main output | 8-circuit design, 250VAC (50/60Hz) 20A per circuit |
main input | 200-240V AC |
bus input | 24-30V DC |
bus current | ≤ 10mA |
Working power | ≤2.5W/4.5W |
frequency | 50-60Hz |
Output (per loop) | Pure resistance load: max 20A Incandescent lamp: max 20A Motor: max 10A Fluorescent lamps with electronic ballast: max 10 A |
shell material | PC flame retardant |

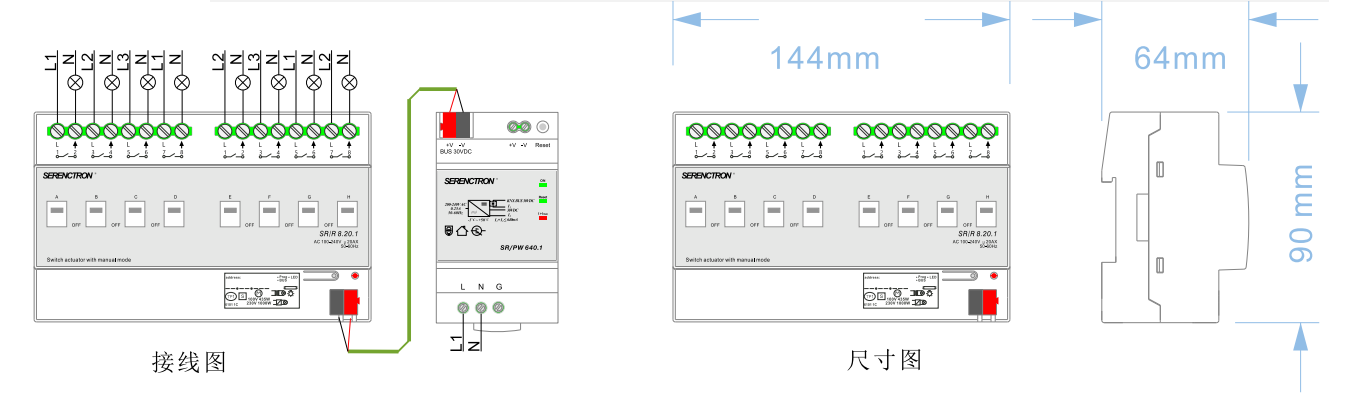

Dimensions (H xW x D) | 90mm X 144mm X 64mm (Approx: 8P) |
Weight(approx.) | 0.45Kg |
Installation method | 35mm DIN rail mounting |
Operating temperature | - 5°C...+45°C |
Storage temperature | - 25°C...+55°C |
transport temperature | - 25°C...+70°C |
Relative humidity | max 90% |
