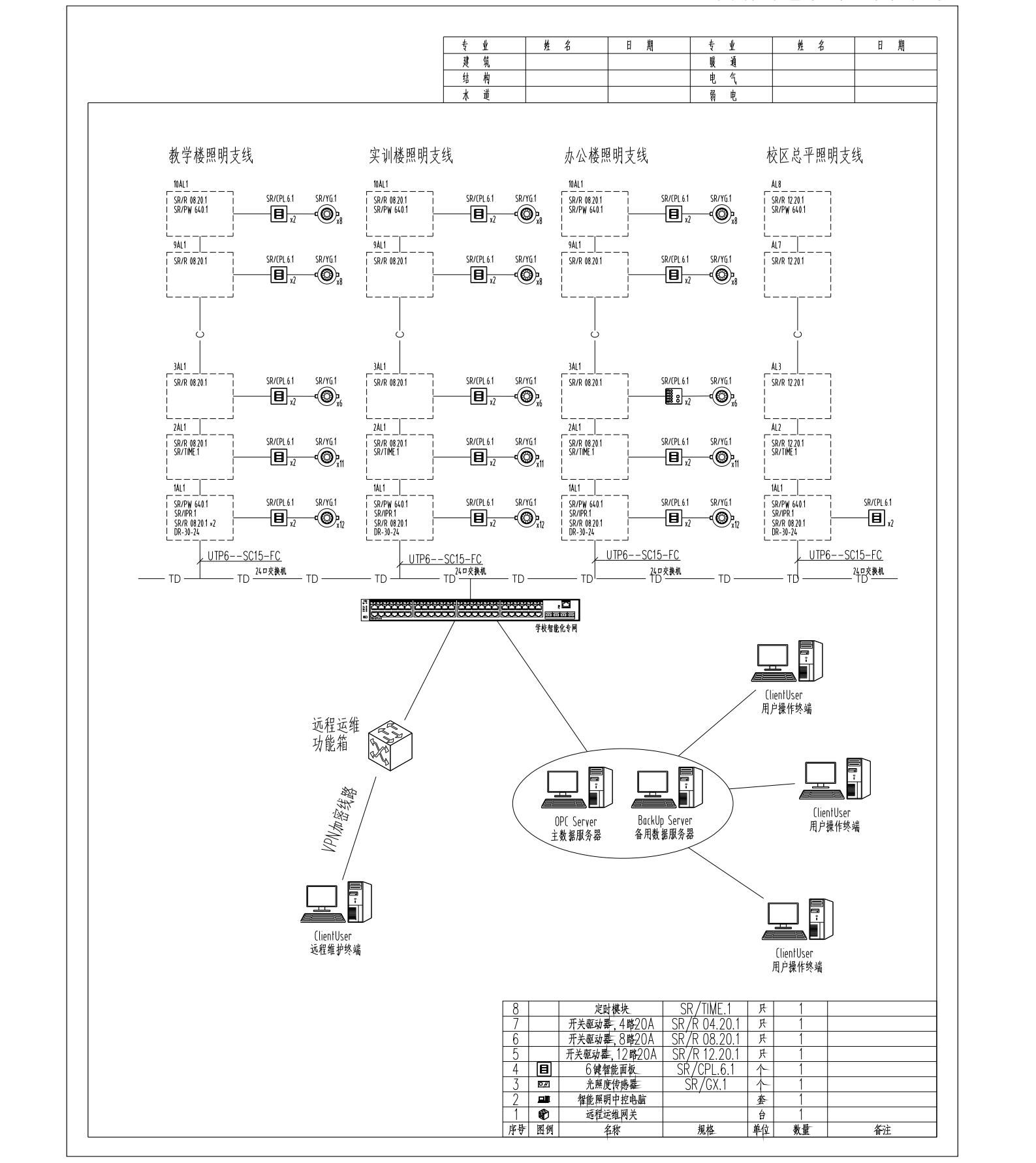

■ The school solution: administrative building, teaching building, dormitory building, library, stadium, parking garage, external floodlight are KNX bus networking; And then through KNX/IP

■ Close access to the school intelligent private network.

■ Each control area can be configured with scene panel, movement sensor, environmental illumination sensor, timing module, logic module, gas sensor as required; CO., CO, etc.

■ The control center can be configured with master data server and redundant server. When the master data server fails, the redundant server automatically replaces the middle data server to provide visual control services to each operation station. After the data server recovers, the redundant server automatically becomes the standby server and the active data server serves as the standby server.

■ The number of computers controlled by each operation station can be configured according to the needs, which are connected to the master data server and redundant server through the intelligent private network of the school to achieve all the functions of intelligent lighting;

■ In this scheme, the remote operation and maintenance gateway is configured. When the system fails, the system operation and maintenance unit can access the system through the remote private network of the operation and maintenance gateway to eliminate all kinds of faults in the system software and improve the user's experience of the system.
